What Is "block-container" Formatting Object?

This section describes block-container formatting object, which is a wrapper of blocks to have more controls on area size, writing-more and reference-orientation.

What Is "block-container" Formatting Object? "block-container" is a block-level formatting object that wraps blocks into a bigger block area with additional attributes to control its size, writing-mode, reference-orientation, etc. Its content is limited to a sequence of blocks only.

A "block-container" formatting object has the following main attributes:

Here is my tutorial example, Block-Container-with-Width.fo that has a "block-container" formatting object with width specified:

<?xml version="1.1" encoding="utf-8"?>
<!-- Block-Container-with-Width.fo
 - Copyright (c) 2006 HerongYang.com. All Rights Reserved.
-->
<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format">
 <fo:layout-master-set>
  <fo:simple-page-master master-name="page"
   margin="0.1in" page-height="4in" page-width="3in">
   <fo:region-body region-name="body" background-color="#eeeeee"/>
  </fo:simple-page-master>
 </fo:layout-master-set>
 <fo:page-sequence master-reference="page">
  <fo:flow flow-name="body">
   <fo:block-container width="1.1in" reference-orientation="90">
    <fo:block margin="0in" padding="0.1in"
     space-before="0.1in" space-after="0.1in"
     border-width="1px" border-style="solid"
     background-color="#ffeeff" font-weight="bold">
     The Three Little Pigs
    </fo:block>
   </fo:block-container>
   <fo:block margin="0in" padding="0.1in"
    space-before="0.1in" space-after="0.1in"
    border-width="1px" border-style="solid"
    background-color="#eeffff" text-align="justify">
    Once upon a time there were three little pigs who lived
    with their Mother.
    Early one morning they woke up and their mother said,
    "you're too big for this house and its time you left home."
   </fo:block>
   <fo:block border-width="1px" border-style="solid"/>
  </fo:flow>
 </fo:page-sequence>
</fo:root>

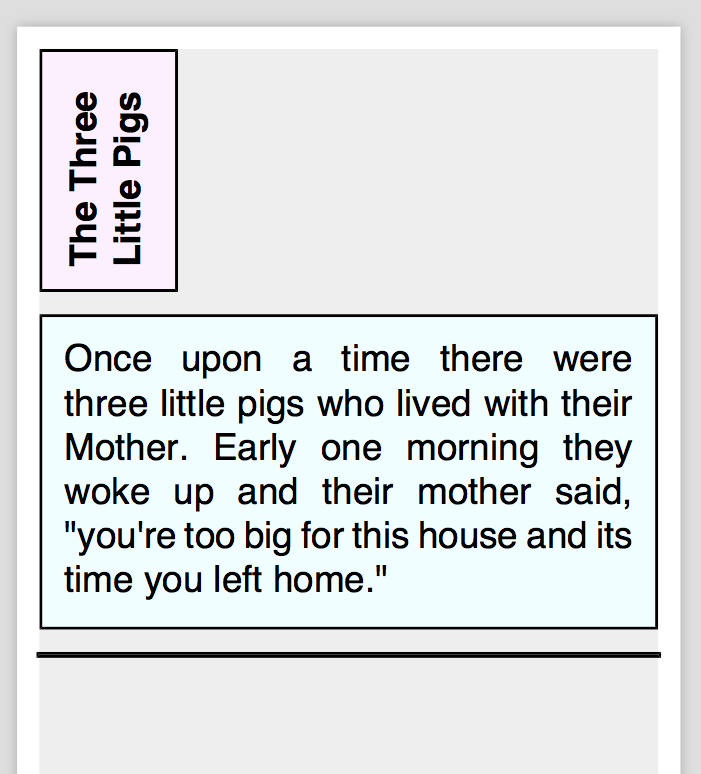

When you process the above sample XSL-FO document to a PDF file and open it, you will see that the first block is shorter with text orientation rotated:

Block Container with Fixed Width
Block Container with Fixed Width
