Precedence of Side Region Corners

This section provides tutorial example to demonstrate that the 'start' or 'end' region wins the corner area against the 'before' or 'after' region when two adjacent 'side' regions are declared by default. If the 'start' or 'end' region wants to win, it must have precedence='true' specified.

Another common issue of using "side" regions in a simple-page-master layout is to know how to control the corner area of two adjacent "side" regions. Here are rules that may be helpful to you in designing "side" regions:

1. By default, the "start" or "end" region wins the corner area against the "before" or "after" region when two adjacent "side" regions are declared.

2. If the "start" or "end" region wants to win the corner area, it must have precedence="true" specified when two adjacent "side" regions are declared.

To demonstrate these rules, I wrote the following XSL-FO document: Precedence-of-Side-Region-Corner.fo.

<?xml version="1.1" encoding="utf-8"?>
<!-- Precedence-of-Side-Region-Corner.fo
 - Copyright (c) 2006 HerongYang.com. All Rights Reserved.
-->
<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format">
 <fo:layout-master-set>
  <fo:simple-page-master master-name="my_page" margin="0.5in"
   page-height="11in" page-width="8.5in"
   reference-orientation="0" writing-mode="lr-tb">
   <fo:region-body region-name="my_body" background-color="#eeeeee"
   margin="1.2in" reference-orientation="0" writing-mode="lr-tb"/>
   <fo:region-before region-name="my_header" background-color="#ffeeee"
   extent="1.5in" reference-orientation="0" writing-mode="lr-tb"
   precedence="false"/>
   <fo:region-after/>
   <fo:region-start region-name="my_sidebar" background-color="#eeffff"
   extent="1.5in" reference-orientation="-90" writing-mode="lr-tb"/>
   <fo:region-end/>
  </fo:simple-page-master>
 </fo:layout-master-set>
 <fo:page-sequence master-reference="my_page">
  <fo:static-content flow-name="my_header">
   <fo:block>&lt;region-before extent="1.5in" ...&gt;</fo:block>
  </fo:static-content>
  <fo:static-content flow-name="my_sidebar">
   <fo:block>< region-start</fo:block>
   <fo:block>extent="1.5in" ...</fo:block>
  </fo:static-content>
  <fo:flow flow-name="my_body">
   <fo:block>&lt;region-body margin="1.2in" ...&gt;</fo:block>
  </fo:flow>
 </fo:page-sequence>
</fo:root>

You can process this example XSL-FO document with Apache FOP tool on the AWT window:

herong> fop -fo Precedence-of-Side-Region-Corner.fo -awt

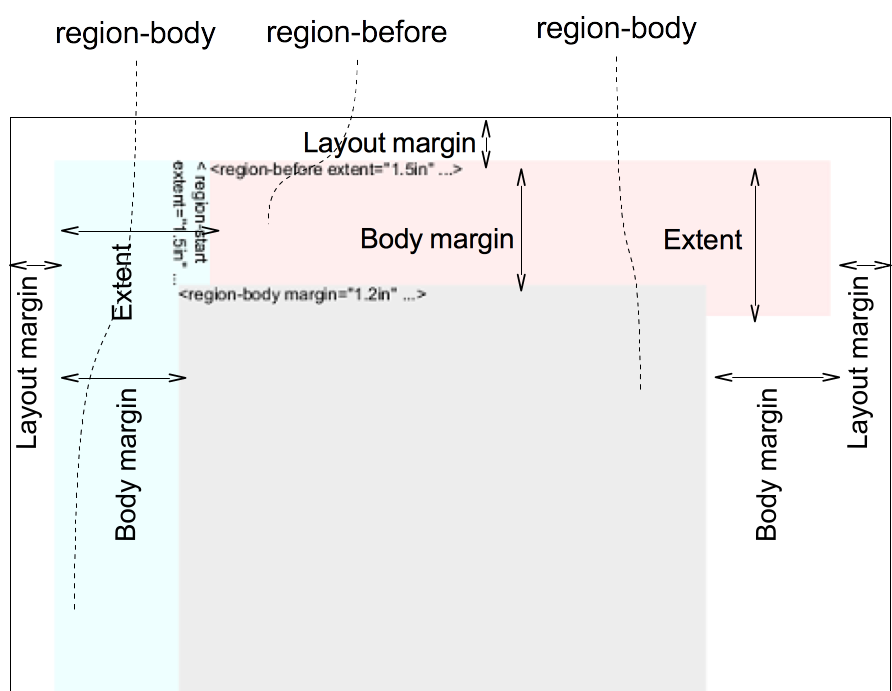

You should see a page displaying the "before" region in pink, the "start" region in light blue, and the "body" region in gray as shown below:

Corner Precedence of Adjacent 'side' Regions
Corner Precedence of Adjacent "side" Regions

Note that the "start" region wins the top left corner area adjacent to "start" and "before" regions, because <fo:region-before precedence="false" ...> is specified. This is also the default behavior.
