Example - hello.fo

This section provides a tutorial example of an XSL-FO document structure, hello.fo, which declares a simple page layout with a body region and specifies a block area type of formatting object to be presented in the body region of the layout.

To help us understand the XSL-FO document top level structure, let's take a look at our first example, hello.fo, which represents a simplest XSL-FO document:

<?xml version="1.1" encoding="utf-8"?>
<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format">
 <fo:layout-master-set>
  <fo:simple-page-master master-name="my_page" margin="0.5in">
   <fo:region-body/>
  </fo:simple-page-master>
 </fo:layout-master-set>
 <fo:page-sequence master-reference="my_page">
  <fo:flow flow-name="xsl-region-body">
   <fo:block>Hello world!</fo:block>
  </fo:flow>
 </fo:page-sequence>
</fo:root>

Notes about this example:

Now we can run Apache FOP to process hello.fo into a PDF file, hello.pdf:

herong> fop -fo hello.fo -pdf hello.pdf

10:05:19 PM org.apache.fop.events.LoggingEventListener processEvent
INFO: Rendered page #1.

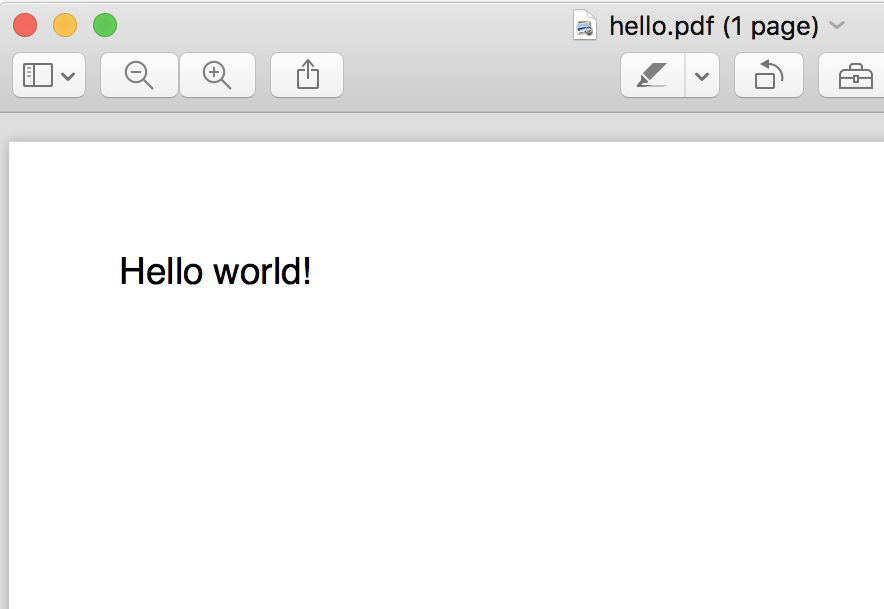

Then open hello.pdf with Adobe Acrobat Reader, we will see the "Hello world!" text be rendered on a single page with 0.5 inch margin as shown below:

XSL-FO Example Output - hello.fo
XSL-FO Example Output - hello.fo
