**Herong's Notes on Physics** - Version 3.21, by Dr. Herong Yang

Events Interval and Relations

This section provides a quick introduction of 3 categories of event relations in Minkowski spacetime: lightlike events, spacelike events and timelike events.

From previous section, we learned that the interval (or distance) of two events in Minkowski spacetime is defined as:

s = sqrt(-(c*dt)**2+dx**2+dy**2+dz**2) #1: Minkowski interval

If we take square on both sides, we get a simpler formula:

s**2 = -(c*dt)**2 + dx**2+dy**2+dz**2 #2: taking square of #1 # Relation of interval, time and space.

With this formula, we can divide relations of two events into 3 categories:

- Lightlike Events - Two events with a zero interval square: s**2 = 0.
- Spacelike Events - Two events with a positive interval square: s**2 > 0.
- Timelike Events - Two events with a negative interval square: s**2 < 0.

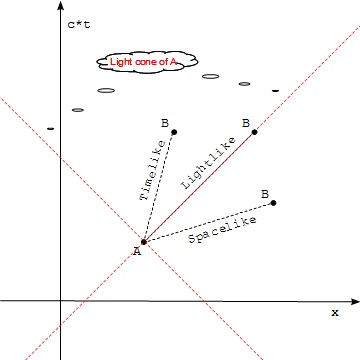

If we draw a light cone for a given event A, the relation of another event B with A can be stated as below:

**A and B are lightlike, if B is on the light cone of A.**
The interval square between A and B is zero: s**2 = 0, or dx**2+dy**2+dz**2 = (c*dt)**2.
In this case, Bob at event B can "instantly see" event A, if B is in the future.
This is because information (light) from event A arrives at event B at the same moment when Bob opens his eye.

**A and B are spacelike, if B is outside the light cone of A.**
The interval square between A and B is greater than zero: s**2 > 0 or dx**2+dy**2+dz**2 > (c*dt)**2.
In this case, Bob at event B will never affected by event A, even if B is in the future.
Or we can say that B is separated from event A with too much space and too less time to be affected by A.

**A and B are timelike, if B is inside the light cone of A.**
The interval square between A and B is less than zero: s**2 < 0 or dx**2+dy**2+dz**2 < (c*dt)**2.
In this case, Bob at event B can be affected by event A, if B is in the future.
Or we can say that B is separated from event A with less space and enough time to be affected by A.
Amy from event A can take a high speed train to arrive at event B and meet Bob.

*Last update: 2014.*
