Using Interface Viewer on Bindings

This section provides a tutorial example on how to use SoapUI Interface Viewer against a binding defined in a WSDL document. The overview tab gives a summary of information about the binding.

Once a WSDL document is loaded, you can use the Interface Viewer to browse any bindings defined in the WSDL document.

1. Run SoapUI and load Hello_WSDL_11_SOAP.wsdl as shown in the previous tutorial.

2. Right click on "helloBinding" binding in the project object tree and select "Show Interface Viewer". The Interface Viewer shows up with 4 tabs: Overview, Service Endpoints, WSDL Content, WS-I Compliance.

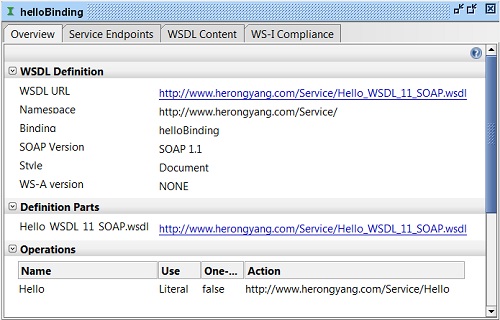

3. Click the Overview tab, properties of "helloBinding" are displayed as shown in this picture:
SoapUI 5.0.0 Interface Viewer

I like this view. It gives a good summary of the binding, helloBinding:

WSDL Definition
------
WSDL URL: http://www.herongyang.com/Service/Hello_WSDL_11_SOAP.wsdl
Namespace: http://www.herongyang.com/Service/
Binding: helloBinding
SOAP Version: SOAP 1.1
Style: Document
WS-A version: NONE

Definition parts
------
Hello_WSDL_11_SOAP.wsdl:
   http://www.herongyang.com/Service/Hello_WSDL_11_SOAP.wsdl

Operations
------
Name: Hello
Use: Literal
One-Way: false
Action: http://www.herongyang.com/Service/Hello

Last update: 2014.
