clear="..." - Block Cleared from Side-Float

This section provides a tutorial example on how to use the clear='...' attribute to clear a block from side-float blocks.

If you are using a side-float block, and you want only the first next block to be formatted around the floated block. You want the second next block be formatted from the side edge of the parent area, not around the floated block. You can use the clear="..." attribute on the second next block to push it down be "cleared" from the floated block.

The clear="..." attribute supports 8 values: start, end, left, right, inside, outside, both and none. The default is clear="none".

Here is my tutorial example, Block-Cleared-of-Side-Float.fo, that has a block cleared of side-float on "both" sides:

<?xml version="1.0" encoding="utf-8"?>
<!-- Block-Cleared-from-Side-Float.fo
 - Copyright (c) 2016, HerongYang.com, All Rights Reserved.
-->
<fo:root xmlns:fo="http://www.w3.org/1999/XSL/Format">
 <fo:layout-master-set>
  <fo:simple-page-master master-name="page"
   margin="0.1in" page-height="3in" page-width="2in">
   <fo:region-body region-name="body" background-color="#eeeeee"/>
  </fo:simple-page-master>
 </fo:layout-master-set>
 <fo:page-sequence master-reference="page">
  <fo:flow flow-name="body">
   <fo:block margin="0in" padding="0.03in" font-size="3pt"
    background-color="transparent" text-align="justify">
Appeared in English Fairy Tales by Joseph Jacobs, first published
in 1890.
   </fo:block>
   <fo:float float="start">
    <fo:block-container width="0.75in">
     <fo:block margin-left="0in" margin-right="0.1in" padding="0.03in"
      border-width="1px" border-style="solid"
      background-color="#ffeeff" font-weight="bold" font-size="7pt">
      (side-float) The Three Little Pigs
     </fo:block>
    </fo:block-container>
   </fo:float>
   <fo:block margin="0in" padding="0.03in" font-size="3pt"
    background-color="transparent" text-align="justify">
(not cleared block) Once upon a time there was not one, not two but three
little pigs who lived with their mother. Early one
morning they woke up and their mother said "you're too
big for this house and it is time you left home."
   </fo:block>
   <fo:block clear="both"
    margin="0in" padding="0.03in" font-size="3pt"
    background-color="transparent" text-align="justify">
(cleared block) So they walked and they walked and they walked.
The first little pig made a house out of straw.
Unfortunately, a wolf came creeping by.

"Little pig, little pig, let me come in". "No, no, no by
the hairs of my chinny chin chin I will not let you in".
"Then I'll huff and I'll puff and I'll blow your house
down". So the wolf huffed and he puffed and he blew the
house down.

So the first little pig ran away to find his brothers.
   </fo:block>
  </fo:flow>
 </fo:page-sequence>
</fo:root>

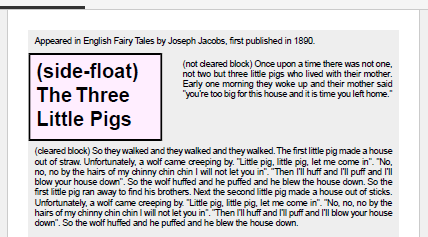

Since Apache FOP 2.1 does not support "float" formatting objects, you need to use RenderX XEP to process the above example. The resulting PDF file shows side-float block with one subsequent block formatted around it and another cleared from it:
